Stockton Bed
Recommended patient profile:Children weighing up to 150 lbs. (68 kg)

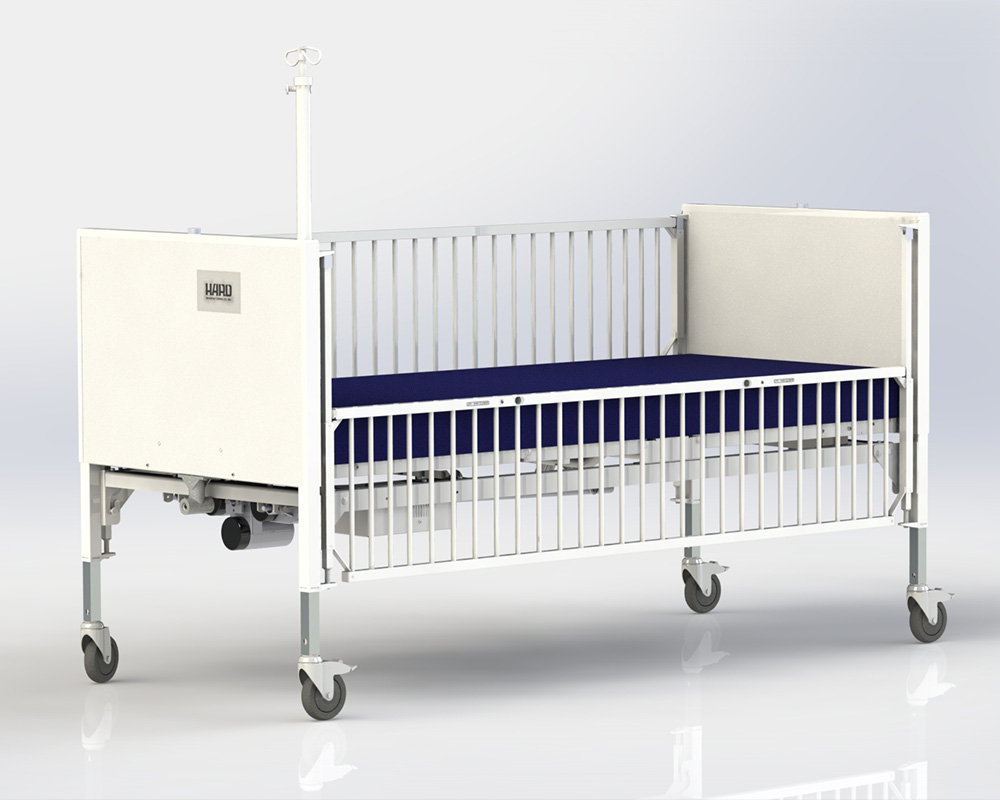

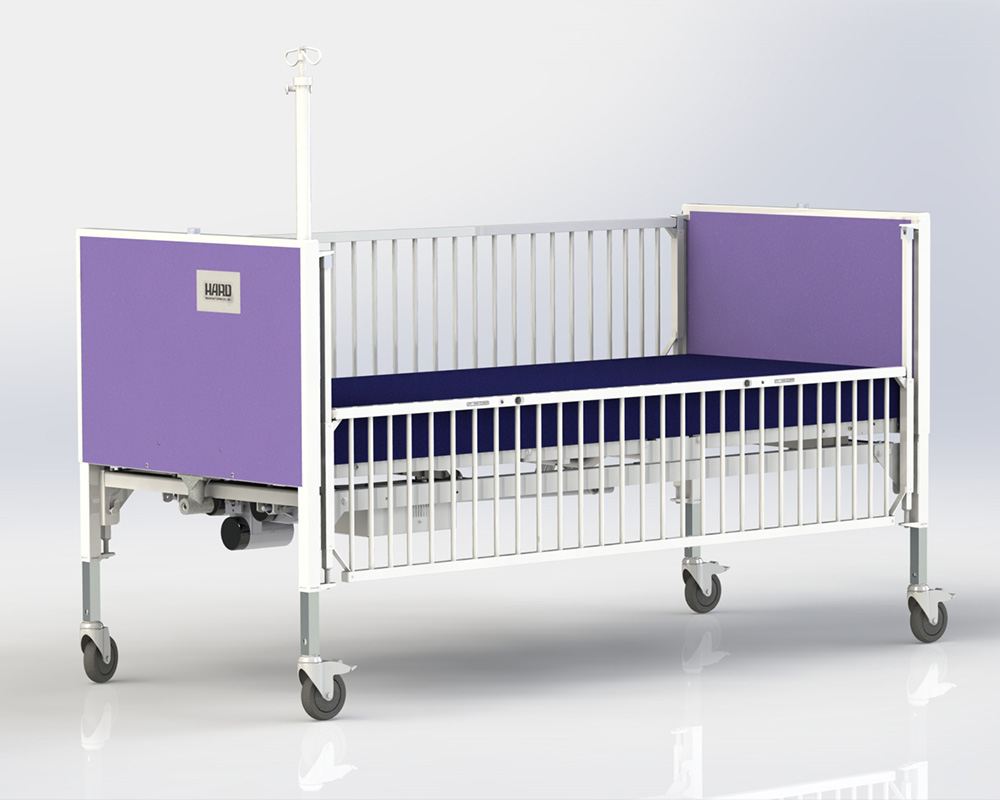

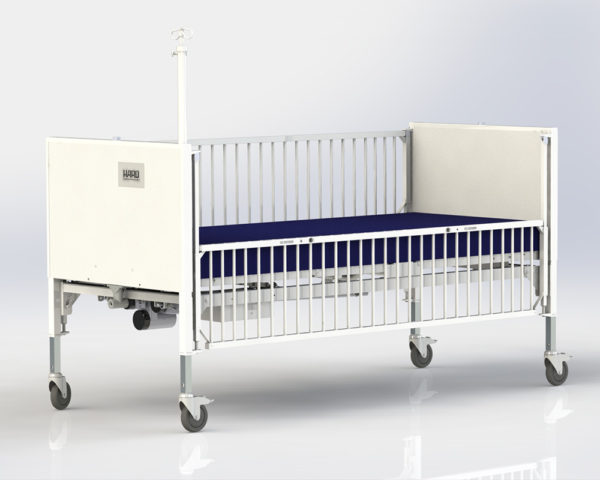

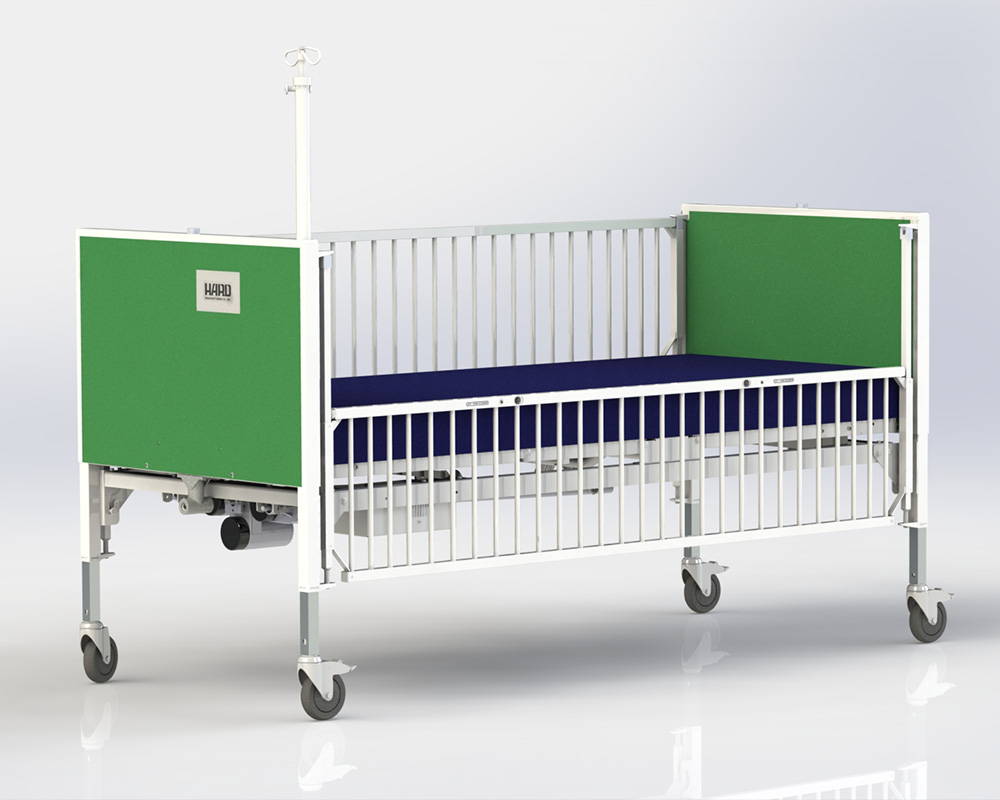

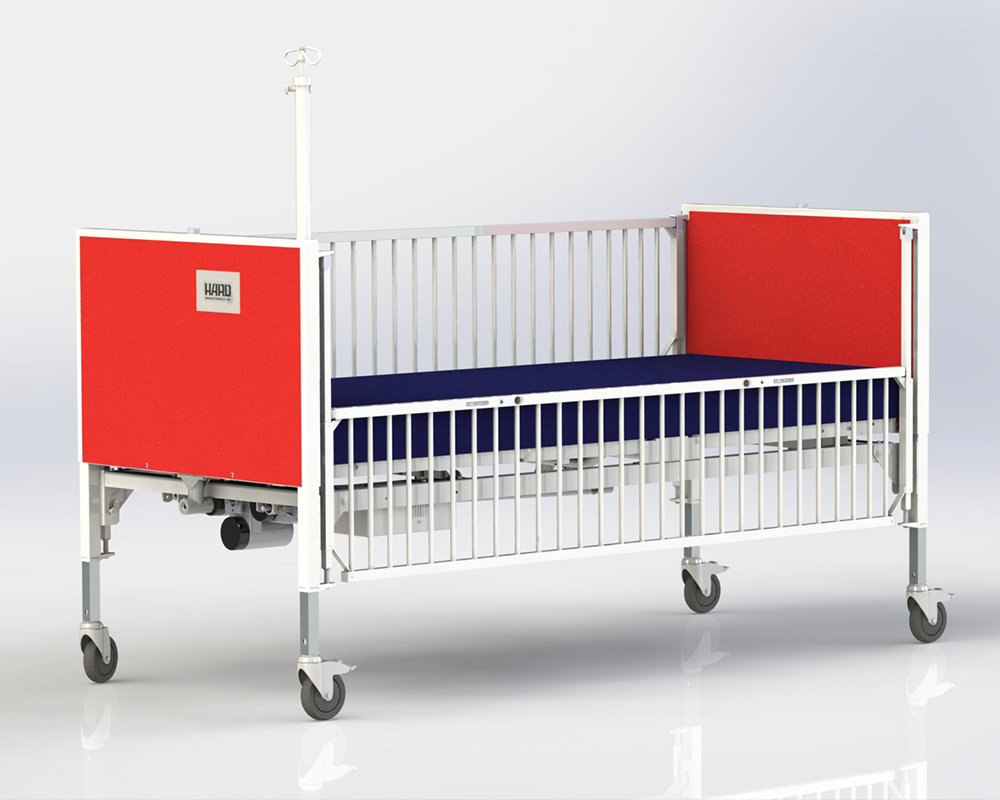

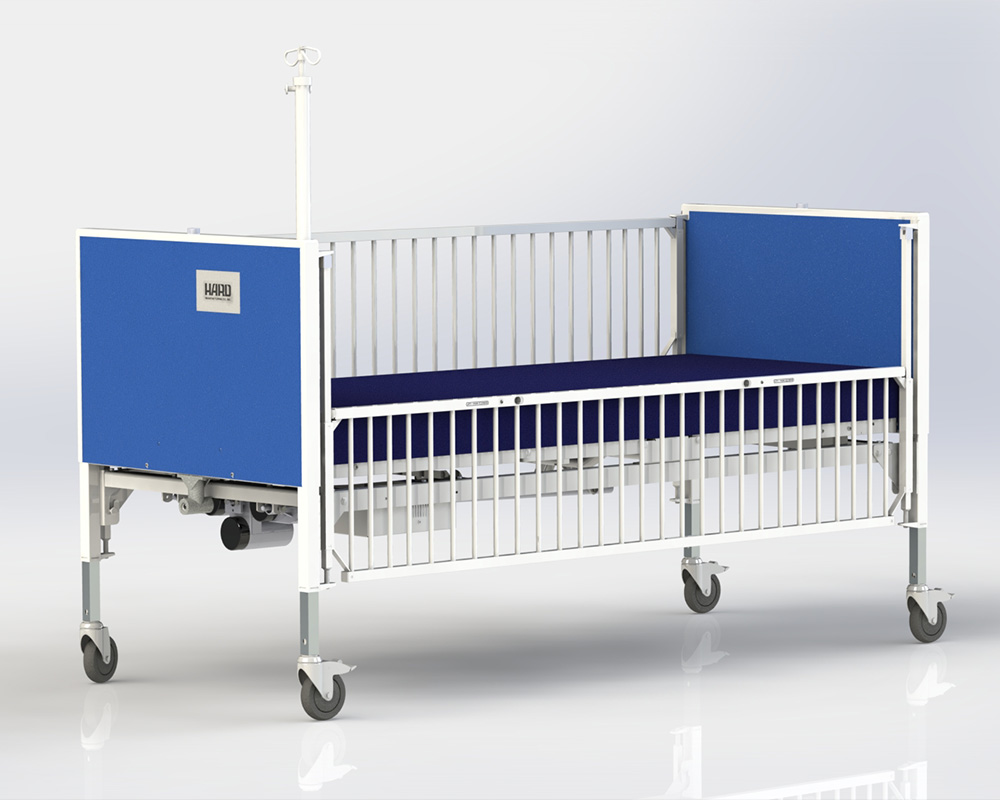

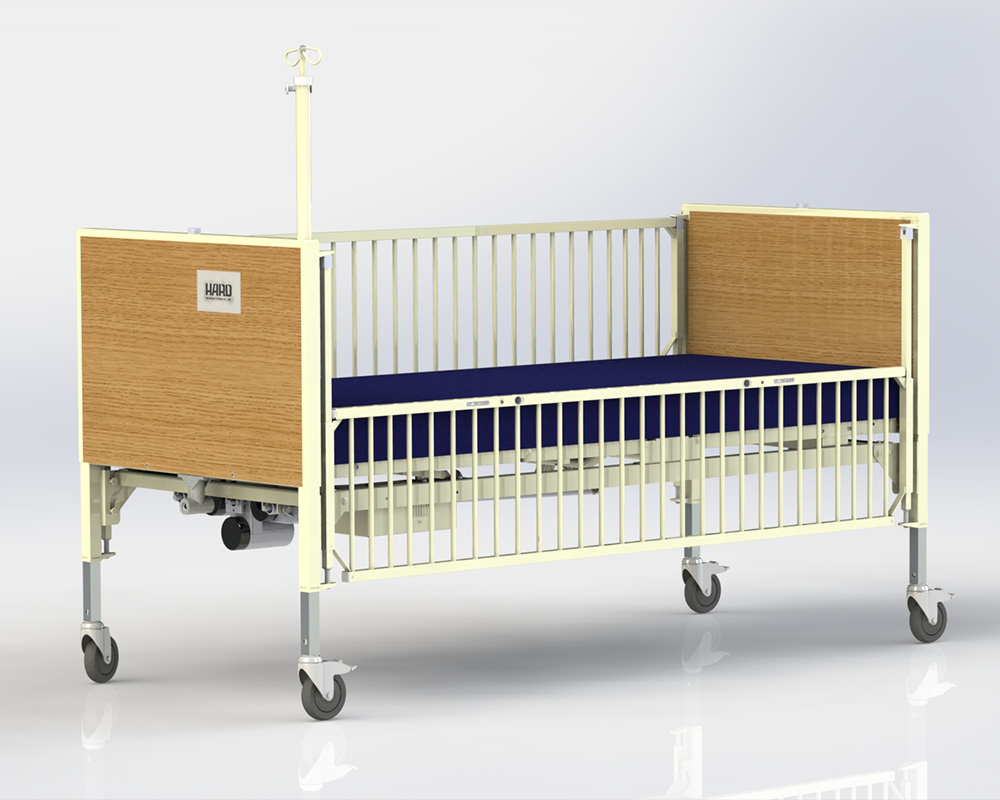

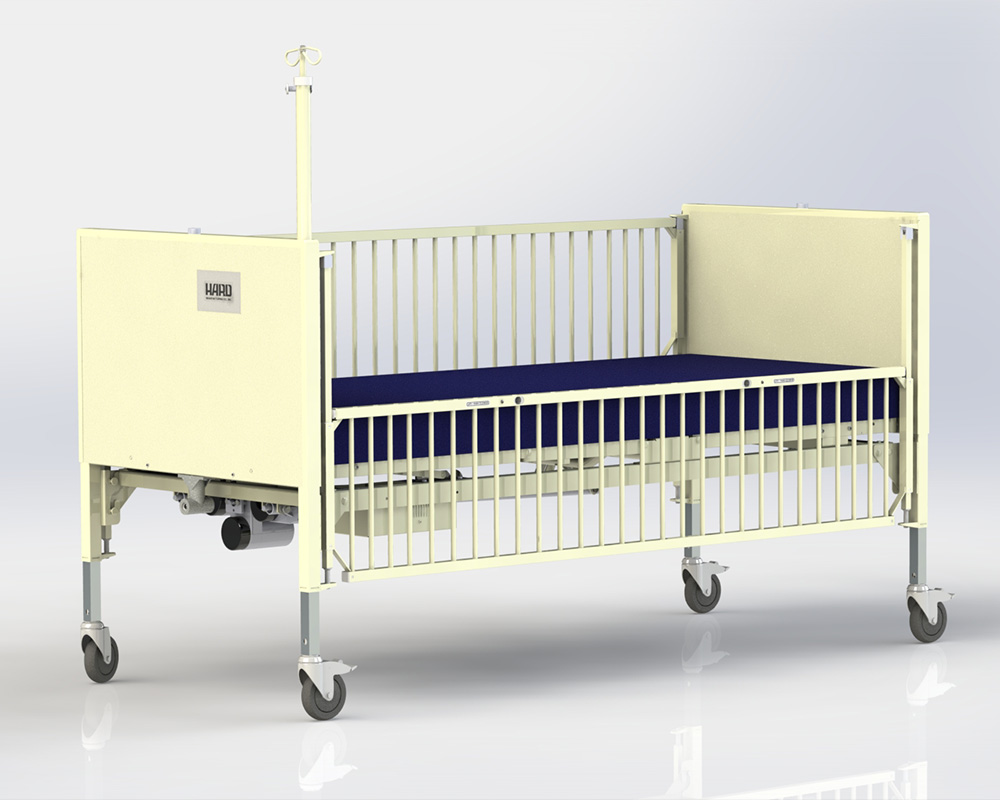

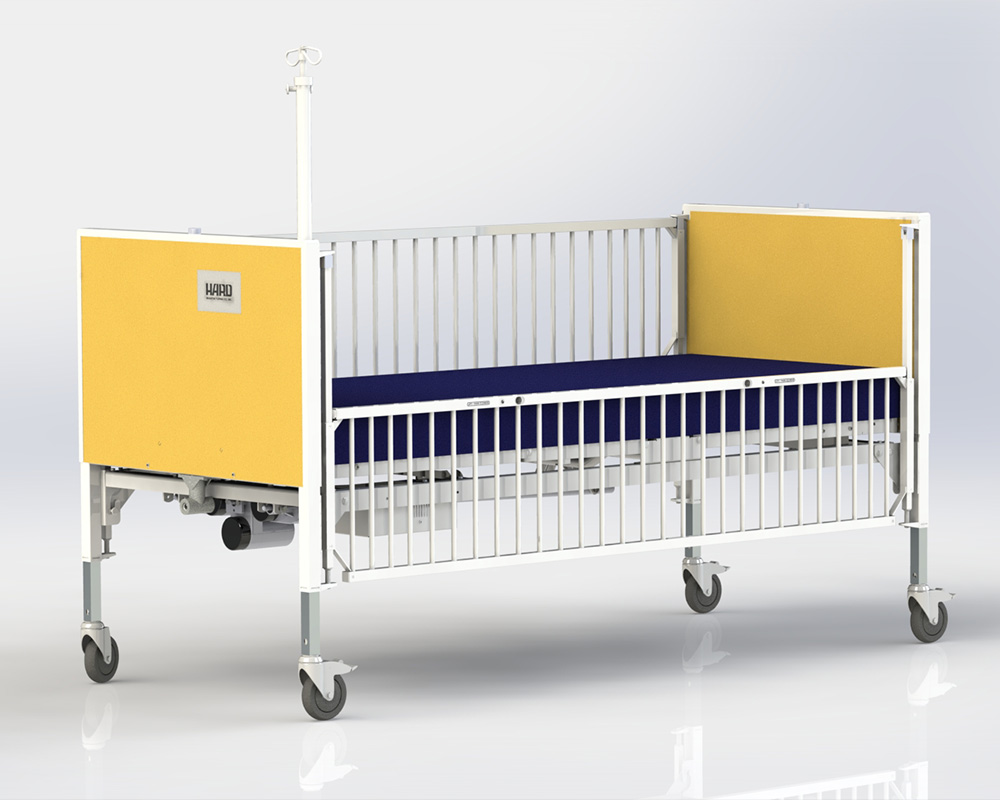

Our Stockton Youth Bed, available in manual or electric models (and in several beautifully designed colors), provides a cost-effective alternative to a full-size adult bed for pediatric units.
Request a quotefeatures

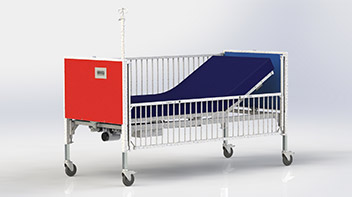

- Head & Knee Elevation
- Hi-Lo System - Manual or Electric
- Trendelenburg Function - Manual or Electric
- Foot End Staff Control Box - Electric Only
- 5" Pressure-Reduction Mattress
- Pan Mattress Surface
- E-Z Lift Sides
- Fingertip Release for Side Rails
- IV Pole
- Heavy-Duty Casters (2 Brake)
- Red/Yellow/Blue Laminate Panels on Ends
- Confetti Epoxy Finish
articulation
- Head/Foot Section: 45/8 degrees
- Trendelenburg: 7 degrees
- Reverse Trendelenburg: 7 degrees
Questions? Call 1-800-873-4273 (Domestic) or 1-716-893-1800 (International)

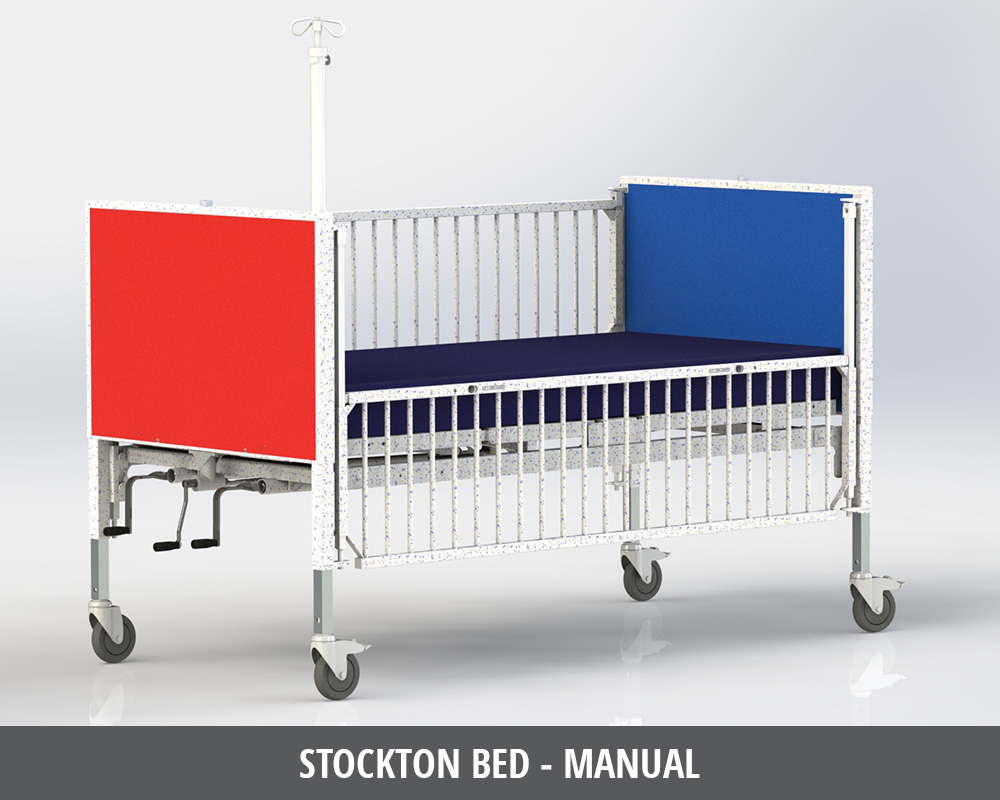

STOCKTON BED – MANUAL
The base model affords the opportunity to manually raise and lower the bed height as well as adjust head and knee articulation.

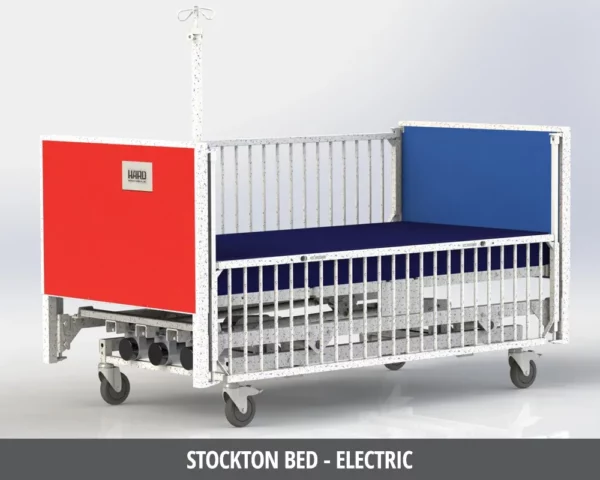

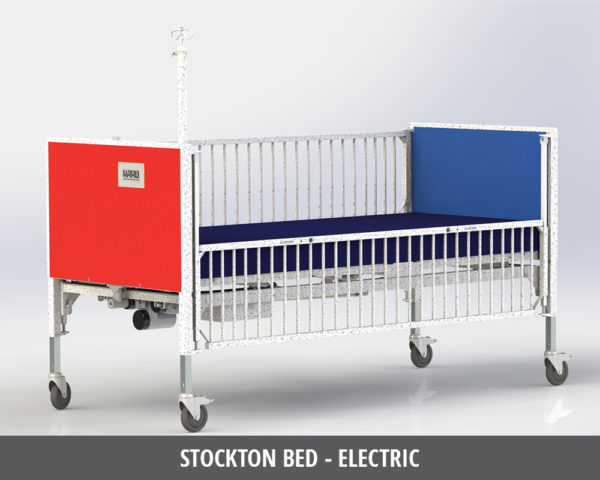

STOCKTON BED – ELECTRIC
The electric model features a nurse control panel for ease in adjusting the head, foot, and height of the bed to facilitate care for the patient.
Specifications
Stockton Bed - Manual
Model # | 1035P | 2085P | ||
---|---|---|---|---|
Overall Dimensions | 36 x 72 in | 36 x 83 in | ||
Mattress Size | 34 x 69 x 5 in | 34 x 80 x 5 in | ||
Casters (2 with brakes) | 5 in | 5 in | ||
Floor to Top of Platform: Highest Position | 28 in | 28 in | ||
Floor to Top of Platform: Lowest Position | 19 in | 19 in | ||
Height of Sides | 16.5 in | 16.5 in | ||
Overall Height: Highest Position | 49 in | 49 in | ||
Overall Height: Lowest Position | 40 in | 40 in | ||
Weight | 282 lbs | 306 lbs |
Stockton Bed - Electric
Model # | 1030P | 2070P | ||
---|---|---|---|---|
Overall Dimensions | 36 x 72 in | 36 x 83 in | ||
Mattress Size | 34 x 69 x 5 in | 34 x 80 x 5 in | ||
Casters (2 with brakes) | 5 in | 5 in | ||
Floor to Top of Platform: Highest Position | 28 in | 28 in | ||
Floor to Top of Platform: Lowest Position | 19 in | 19 in | ||
Height of Sides | 16.5 in | 16.5 in | ||
Overall Height: Highest Position | 49 in | 49 in | ||
Overall Height: Lowest Position | 40 in | 40 in | ||
Weight | 307 lbs | 331 lbs |
Stockton Bed - Manual
Model # | 1035P | 2085P | ||
---|---|---|---|---|
Overall Dimensions | 91 x 183 cm | 91 x 211 cm | ||
Mattress Size | 86 x 175 x 13 cm | 86 x 203 x 13 cm | ||
Casters (2 with brakes) | 13 cm | 13 cm | ||
Floor to Top of Platform: Highest Position | 71 cm | 71 cm | ||
Floor to Top of Platform: Lowest Position | 48 cm | 48 cm | ||
Height of Sides | 42 cm | 42 cm | ||
Overall Height: Highest Position | 124 cm | 124 cm | ||
Overall Height: Lowest Position | 102 cm | 102 cm | ||
Weight | 127.9 kgs | 138.8 kgs |
Stockton Bed - Electric
Model # | 1030P | 2070P | ||
---|---|---|---|---|
Overall Dimensions | 91 x 183 cm | 91 x 211 cm | ||
Mattress Size | 86 x 175 x 13 cm | 86 x 203 x 13 cm | ||
Casters (2 with brakes) | 13 cm | 13 cm | ||
Floor to Top of Platform: Highest Position | 71 cm | 71 cm | ||
Floor to Top of Platform: Lowest Position | 48 cm | 48 cm | ||
Height of Sides | 42 cm | 42 cm | ||
Overall Height: Highest Position | 124 cm | 124 cm | ||
Overall Height: Lowest Position | 102 cm | 102 cm | ||
Weight | 139.3 kgs | 150.1 kgs |
