Springfield Crib
Recommended patient profile:Up to three years of age – Weighing up to 150 lbs. (68 kg)
Designed for effective and comfortable care, the Springfield Crib is created for use by active pediatric patients who may be at risk of climbing out of a regular hospital crib. Customizable safety features include an optional electric Hi-Lo System, which allows for a range of height adjustments to prevent caregiver back strain and assist with the transferring of patients into and out of the crib.
Featuring clear vinyl safety panels on all four sides of the crib, this product provides a safeguard while allowing patients to see their surroundings.
Request a quotefeatures
- Manual Head & Knee Elevation
- 5" FlexShield™ Pressure Reduction Mattress
- Pan Mattress Surface
- Drop Head End Rail
- E-Z Lift Sides
- Clear Vinyl Safety Panels - All Sides
- Gatch Extender
- IV Pole
- Shelf with Oxygen Tank Holders
- 5” Heavy Duty Casters (1 steer, 2 brake)
- Teething Rails

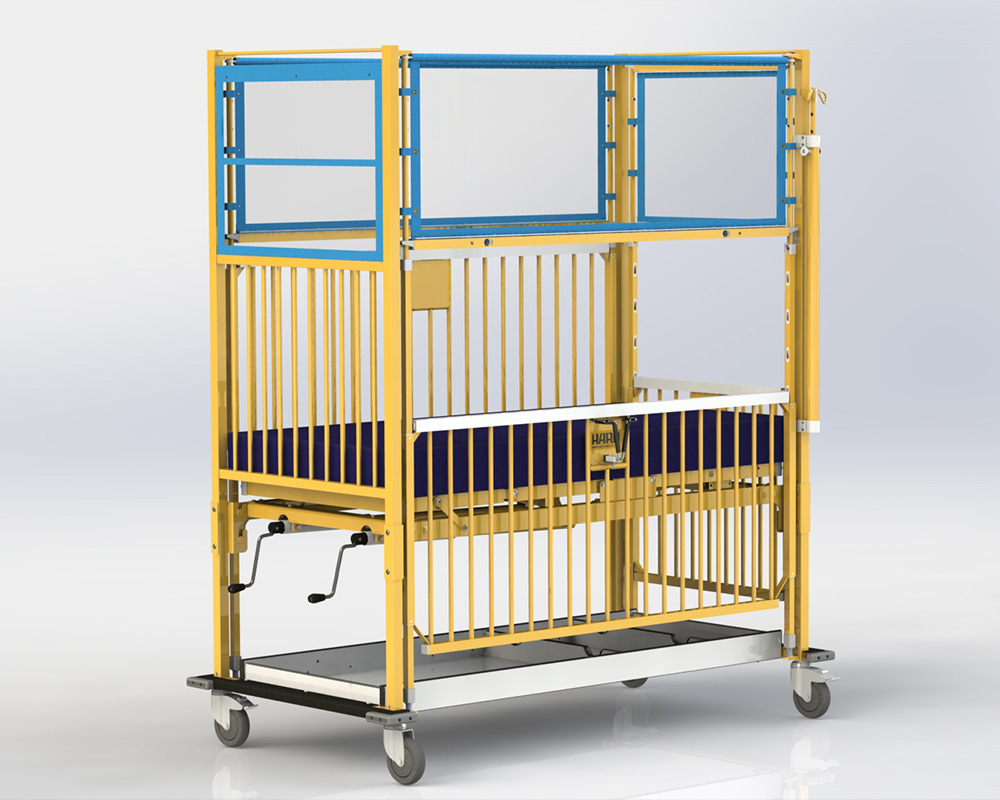

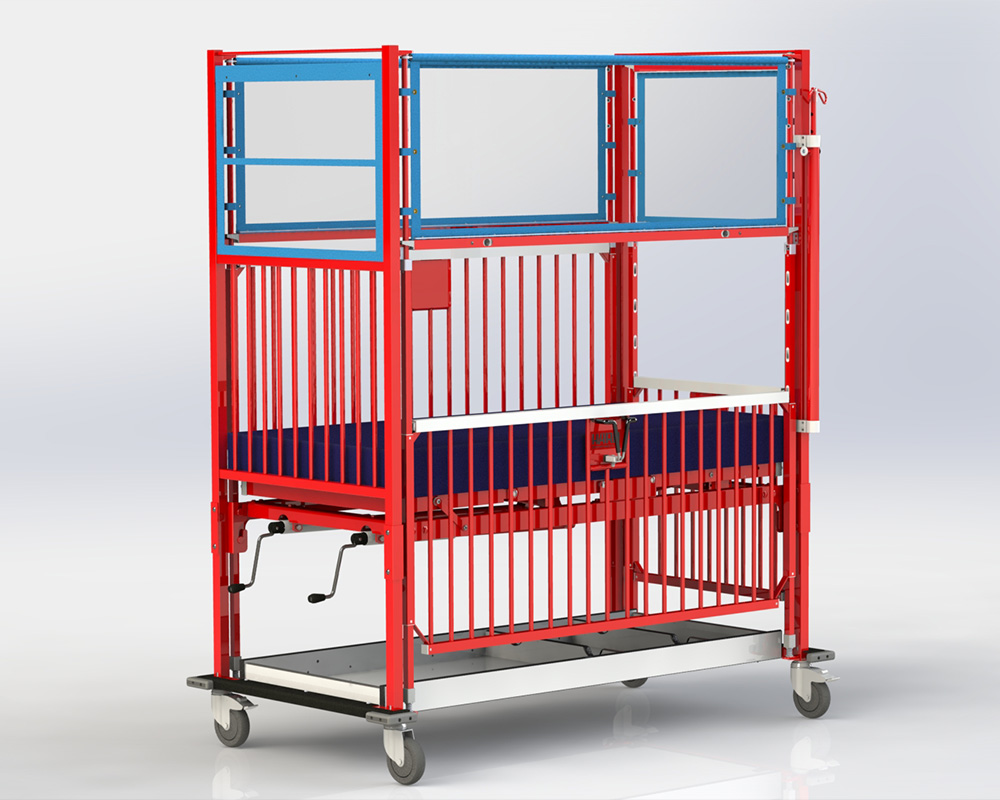

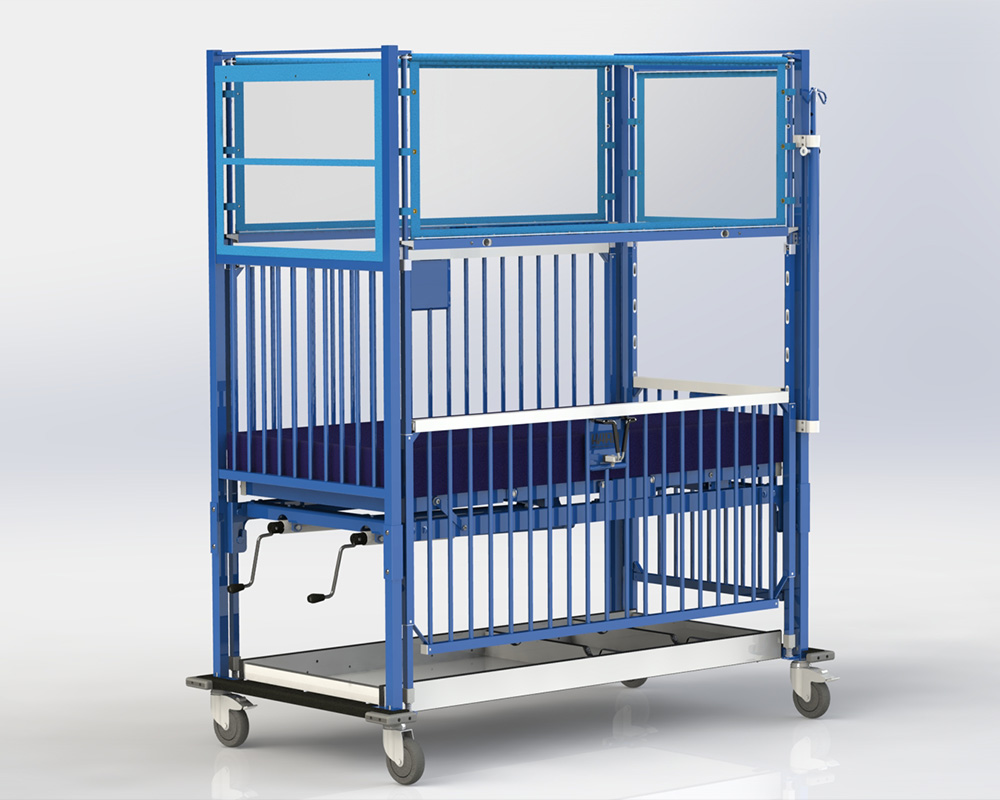

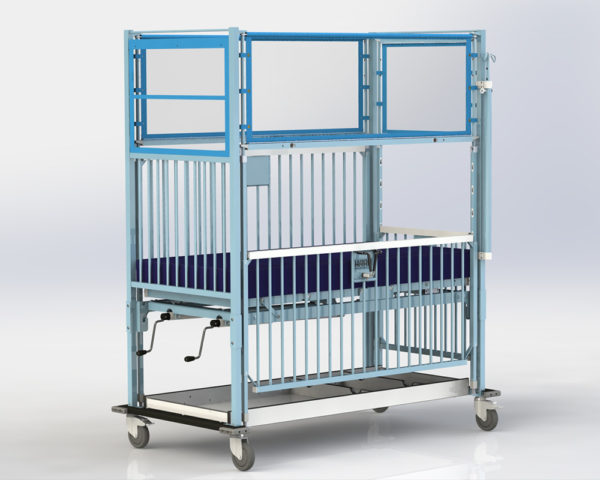

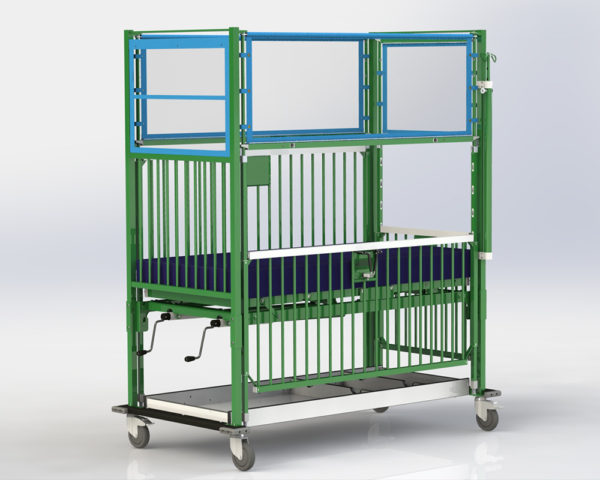

- Confetti Epoxy Finish
- Anti-Microbial Coating
articulation
- Head/Foot Section: 35/15 degrees
- Trendelenburg: 5 degrees
- Reverse Trendelenburg: 15 degrees
Springfield Crib Video

Questions? Call 1-800-873-4273 (Domestic) or 1-716-893-1800 (International)

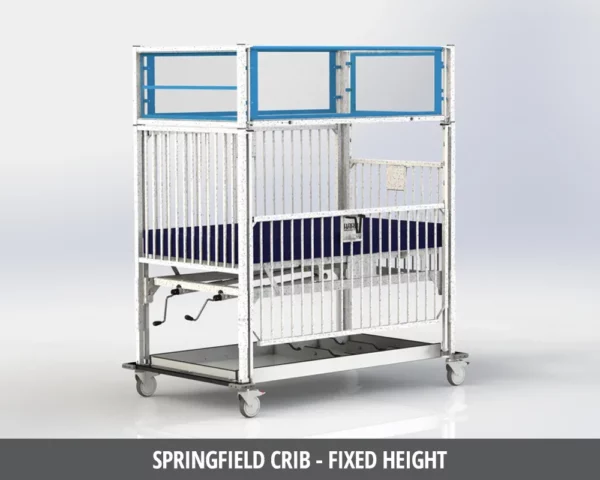

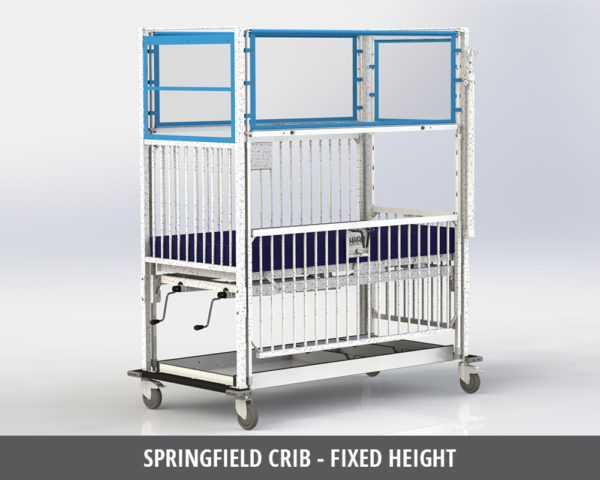

Springfield Crib

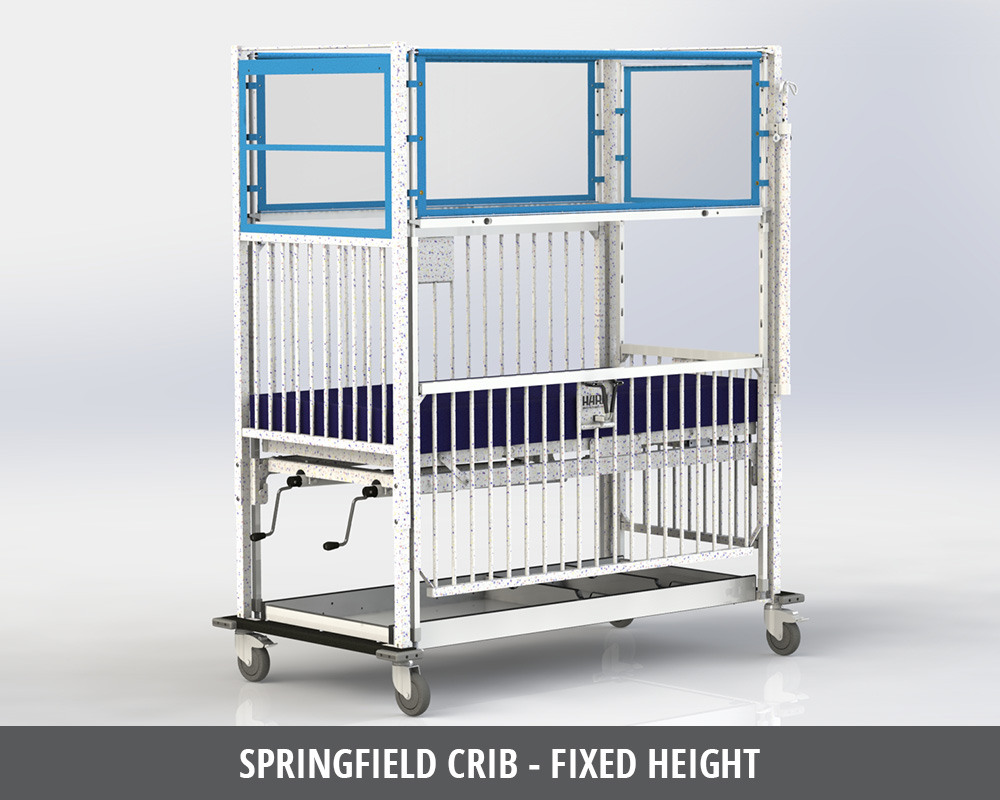

The base model features a fixed height platform, with manually adjustable head and knee articulation.

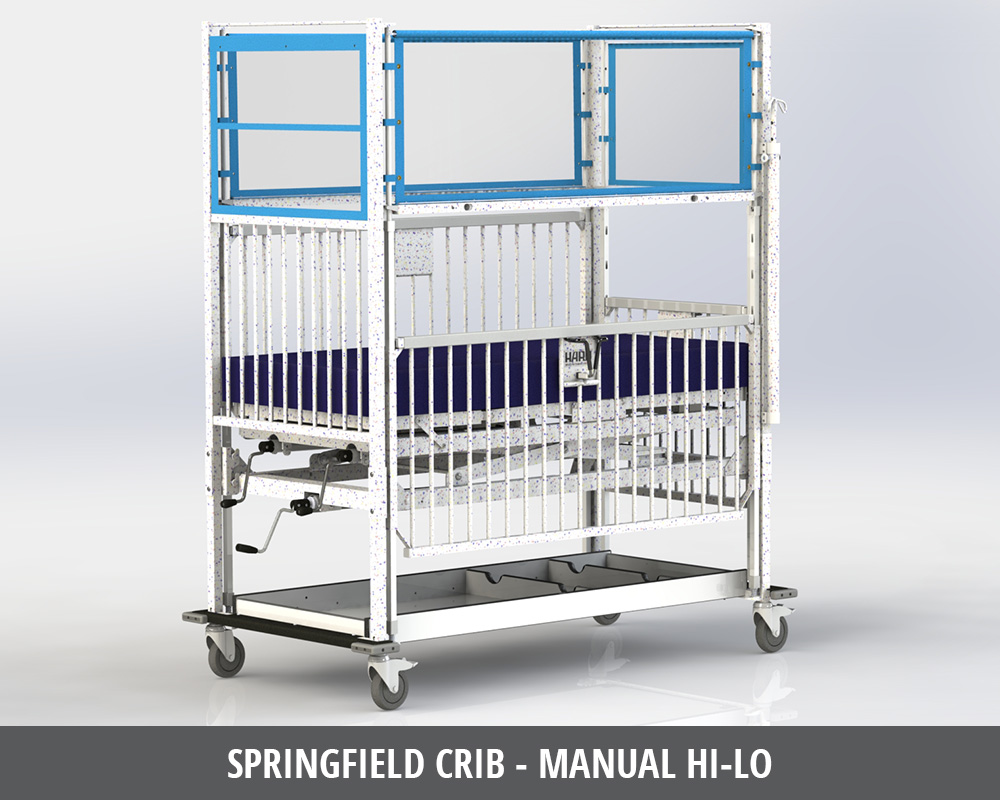

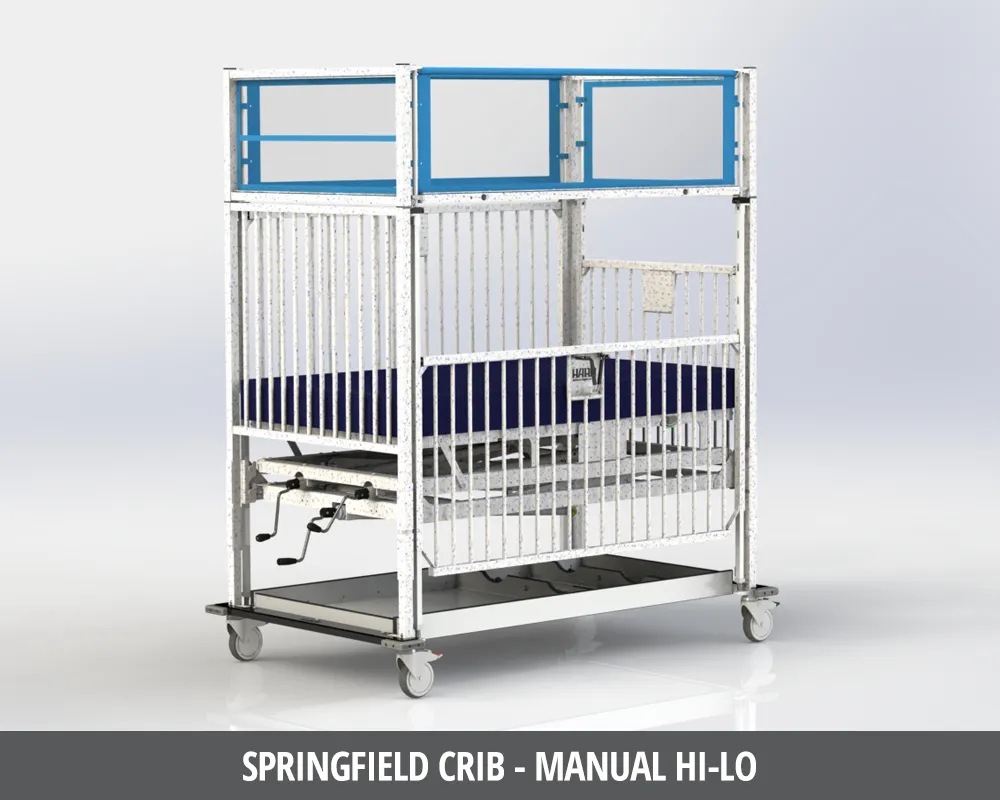

Springfield Crib - Manual Hi-Lo
The manual hi-lo model provides full manual mobility with hi-lo capabilities as well as head and knee elevation. These features facilitate easier access the patient by the care delivery team.

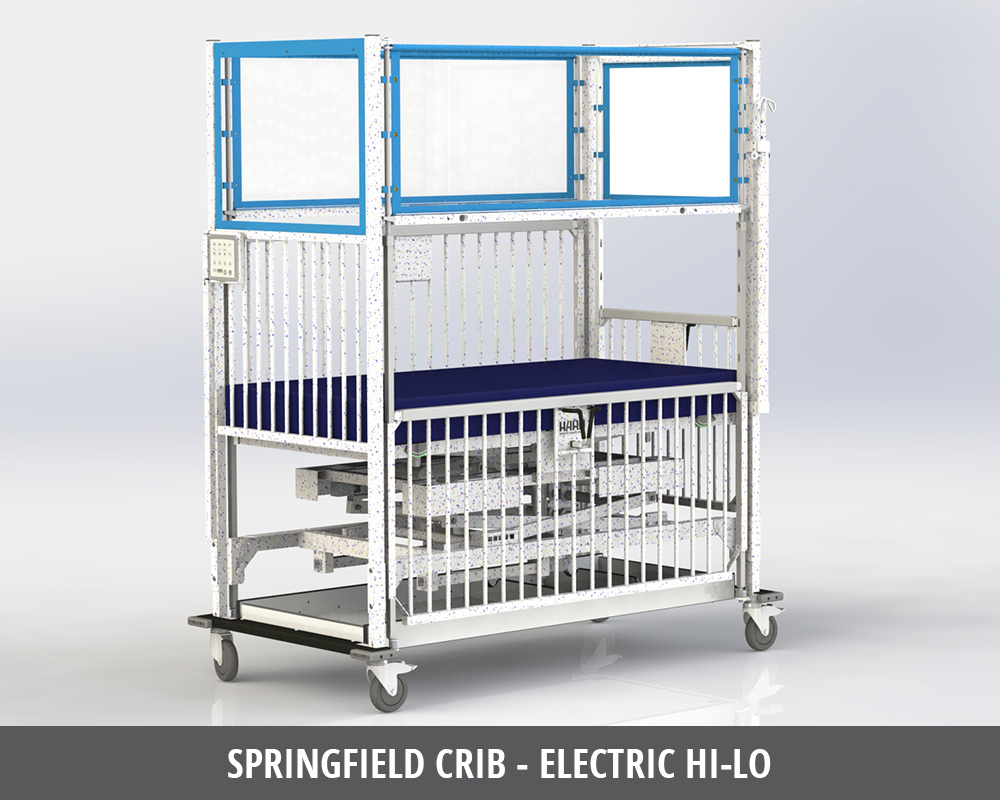

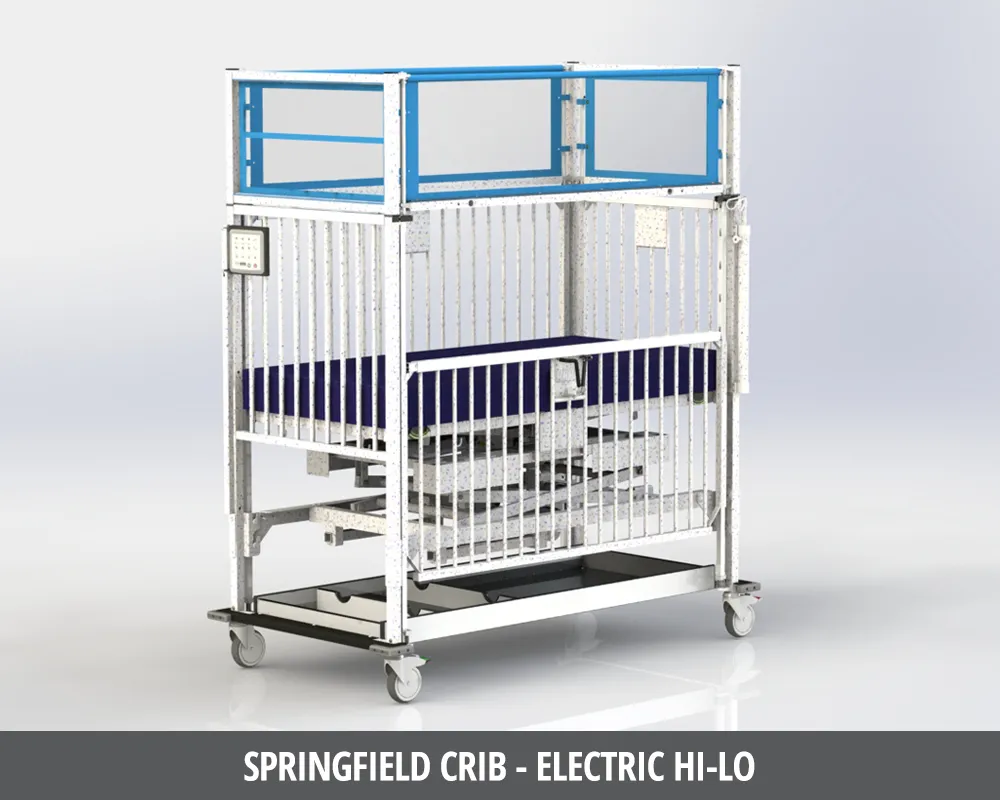

Springfield Crib - Electric Hi-Lo
Our fully electric model, featuring state-of-the-art linear actuators, provides for maximum ease of use in caring for the patient. The crib features a nurse control panel for easy adjustments of the crib head, foot and height as well as an emergency CPR function and battery backup option.
Specifications
Springfield Crib
Model # | 1943 | 1955 | ||
---|---|---|---|---|
Crib Dimensions - Overall without Bumpers | 30 x 60 in | 36 x 60 in | ||
Crib Dimensions - Overall with Bumpers | 34 x 65 in | 40 x 65 in | ||
Mattress Size | 28 x 58 x 5 in | 34 x 58 x 5 in | ||
Casters (2 with brakes, 1 steer) | 5 in | 5 in | ||
Overall Crib Height | 75 in | 75 in | ||
Floor to Top of Platform | 29 in | 29 in | ||
Height of Sides | 45 in | 45 in | ||
Weight | 247 lbs | 277 lbs |
Springfield Crib - Manual Hi-Lo
Model # | 1843 | 1855 | ||
---|---|---|---|---|
Crib Dimensions - Overall without Bumpers | 30 x 60 in | 36 x 60 in | ||
Crib Dimensions - Overall with Bumpers | 34 x 65 in | 40 x 65 in | ||
Mattress Size | 28 x 58 x 5 in | 34 x 58 x 5 in | ||
Casters (2 with brakes, 1 steer) | 5 in | 5 in | ||
Overall Crib Height | 75 in | 75 in | ||
Floor to Top of Platform: Highest Position | 39 in | 39 in | ||
Floor to Top of Platform: Lowest Position | 29 in | 29 in | ||
Height of Sides | 45 in | 45 in | ||
Weight | 285 lbs | 315 lbs |
Springfield Crib - Electric Hi-Lo
Model # | 1743 | 1755 | ||
---|---|---|---|---|
Crib Dimensions - Overall without Bumpers | 30 x 60 in | 36 x 60 in | ||
Crib Dimensions - Overall with Bumpers | 34 x 65 in | 40 x 65 in | ||
Mattress Size | 28 x 58 x 5 in | 34 x 58 x 5 in | ||
Casters (2 with brakes, 1 steer) | 5 in | 5 in | ||
Overall Crib Height | 75 in | 75 in | ||
Floor to Top of Platform: Highest Position | 42 in | 42 in | ||
Floor to Top of Platform: Lowest Position | 30 in | 30 in | ||
Height of Sides | 45 in | 45 in | ||
Weight | 324 lbs | 354 lbs |
Springfield Crib
Model # | 1943 | 1955 | ||
---|---|---|---|---|
Crib Dimensions - Overall without Bumpers | 76 x 152 cm | 91 x 152 cm | ||
Crib Dimensions - Overall with Bumpers | 86 x 165 cm | 102 x 165 cm | ||
Mattress Size | 71 x 147 x 13 cm | 86 x 147 x 13 cm | ||
Casters (2 with brakes, 1 steer) | 13 cm | 13 cm | ||
Overall Crib Height | 191 cm | 191 cm | ||
Floor to Top of Platform | 74 cm | 74 cm | ||
Height of Sides | 114 cm | 114 cm | ||
Weight | 112 kgs | 125.6 kgs |
Springfield Crib - Manual Hi-Lo
Model # | 1843 | 1855 | ||
---|---|---|---|---|
Crib Dimensions - Overall without Bumpers | 76 x 152 cm | 91 x 152 cm | ||
Crib Dimensions - Overall with Bumpers | 86 x 165 cm | 102 x 165 cm | ||
Mattress Size | 71 x 147 x 13 cm | 86 x 147 x 13 cm | ||
Casters (2 with brakes, 1 steer) | 13 cm | 13 cm | ||
Overall Crib Height | 191 cm | 191 cm | ||
Floor to Top of Platform: Highest Position | 99 cm | 99 cm | ||
Floor to Top of Platform: Lowest Position | 74 cm | 74 cm | ||
Height of Sides | 114 cm | 114 cm | ||
Weight | 129.3 kgs | 142.9 kgs |
Springfield Crib - Electric Hi-Lo
Model # | 1743 | 1755 | ||
---|---|---|---|---|
Crib Dimensions - Overall without Bumpers | 76 x 152 cm | 91 x 152 cm | ||
Crib Dimensions - Overall with Bumpers | 86 x 165 cm | 102 x 165 cm | ||
Mattress Size | 71 x 147 x 13 cm | 86 x 147 x 13 cm | ||
Casters (2 with brakes, 1 steer) | 13 cm | 13 cm | ||
Overall Crib Height | 191 cm | 191 cm | ||
Floor to Top of Platform: Highest Position | 107 cm | 107 cm | ||
Floor to Top of Platform: Lowest Position | 76 cm | 76 cm | ||
Height of Sides | 114 cm | 114 cm | ||
Weight | 147 kgs | 160.6 kgs |
