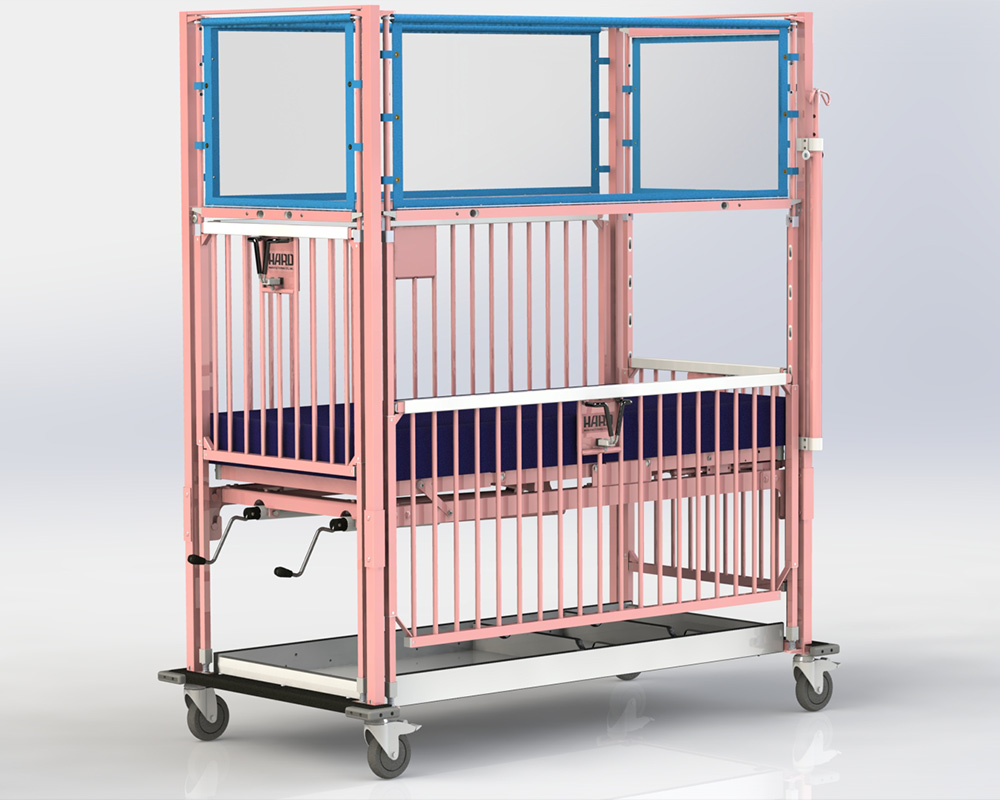

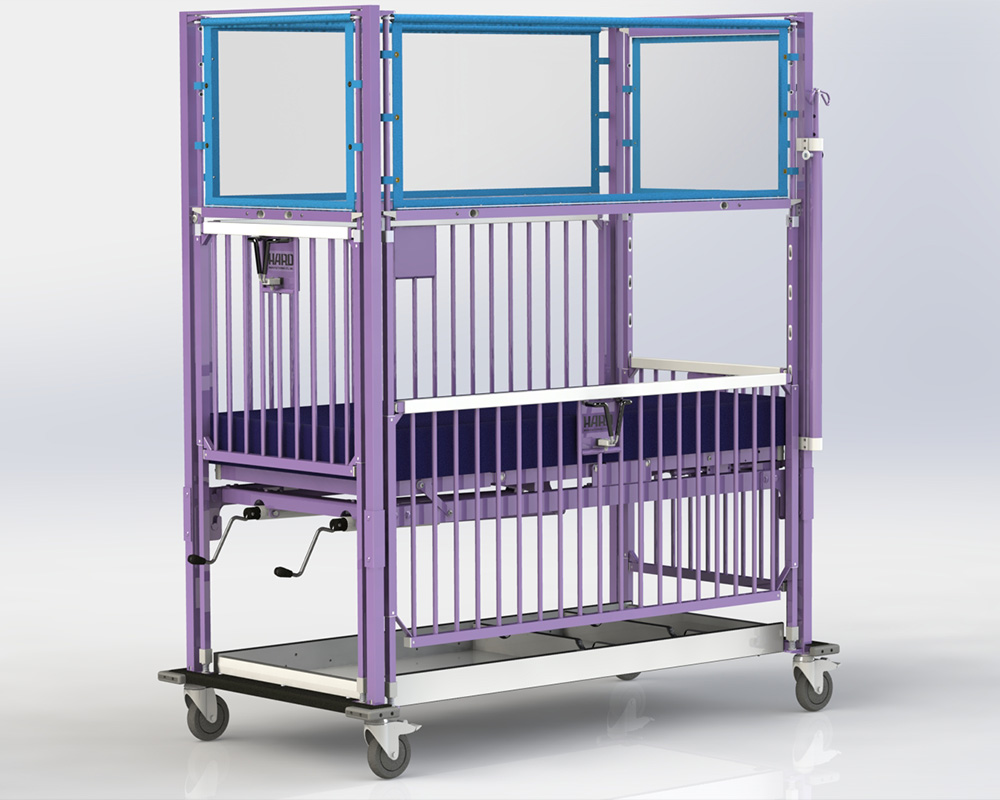

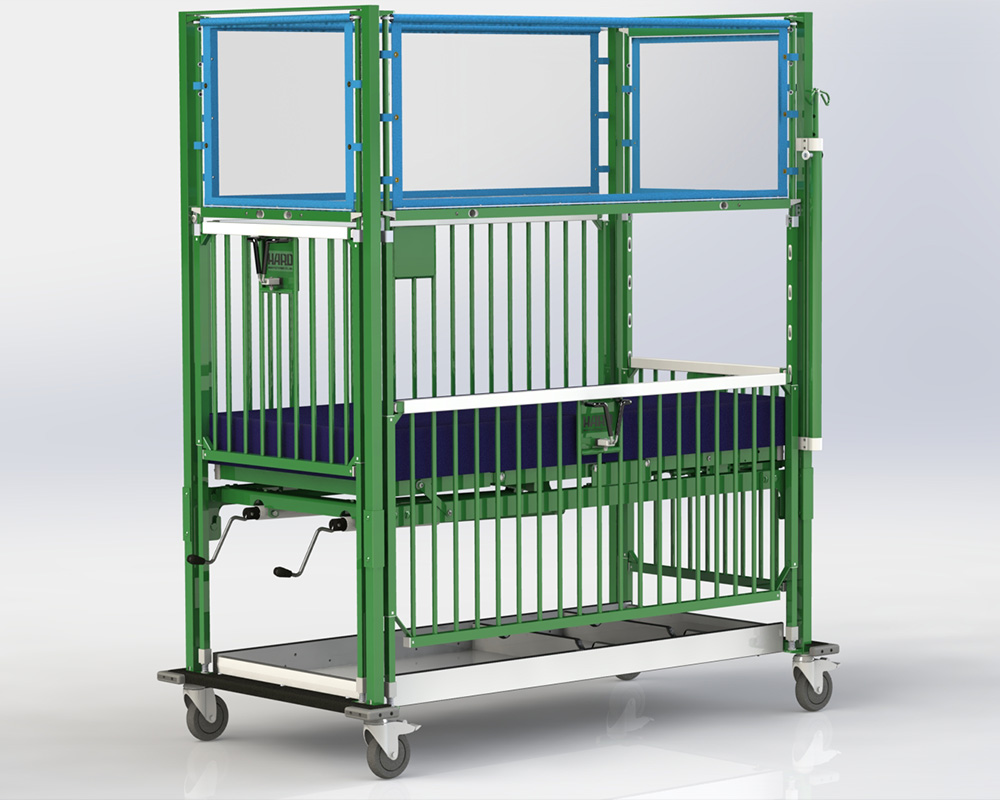

Springfield Procedural Crib
Recommended patient profile:Up to Four years of age – Weighing up to 150 lbs. (68 kg)
Designed for patient comfort and accessibility, our Springfield Procedural Crib allows for all four sides to drop down just below the mattress for full access to the patient by multiple caregivers. In addition to the crib’s rails, clear vinyl safety panels on all four sides of crib give an added layer of safety for active patients.
Request a quotefeatures
- Manual Head & Knee Elevation
- 5" FlexShield™ Pressure Reduction Mattress
- Pan Mattress Surface
- Drop Head & Foot End Rails
- E-Z Lift Sides
- Clear Vinyl Safety Panels - All 4 sides
- IV Pole
- Shelf with Oxygen Tank Holders
- 5” Heavy Duty Casters (1 steer, 2 brake)
- Bumper System
- Teething Rails
- Confetti Epoxy Finish
- Anti-Microbial Coating
articulation
- Head/Foot Section: 35/15 degrees
- Trendelenburg: 7 degrees
- Reverse Trendelenburg: 7 degrees
Springfield Video

Questions? Call 1-800-873-4273 (Domestic) or 1-716-893-1800 (International)

Springfield Procedural Crib
The base model features a fixed height platform, with manually adjustable head and knee articulation.

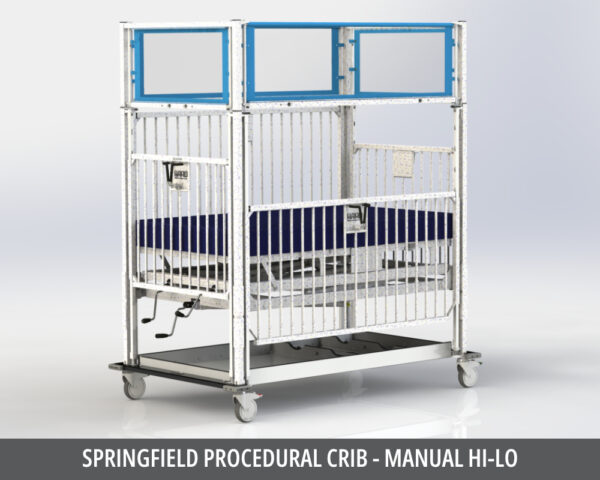

Springfield Procedural Crib - Manual Hi-Lo
The manual hi-lo model provides full manual mobility with hi-lo capabilities as well as head and knee elevation. These features facilitate easier access the patient by the care delivery team.

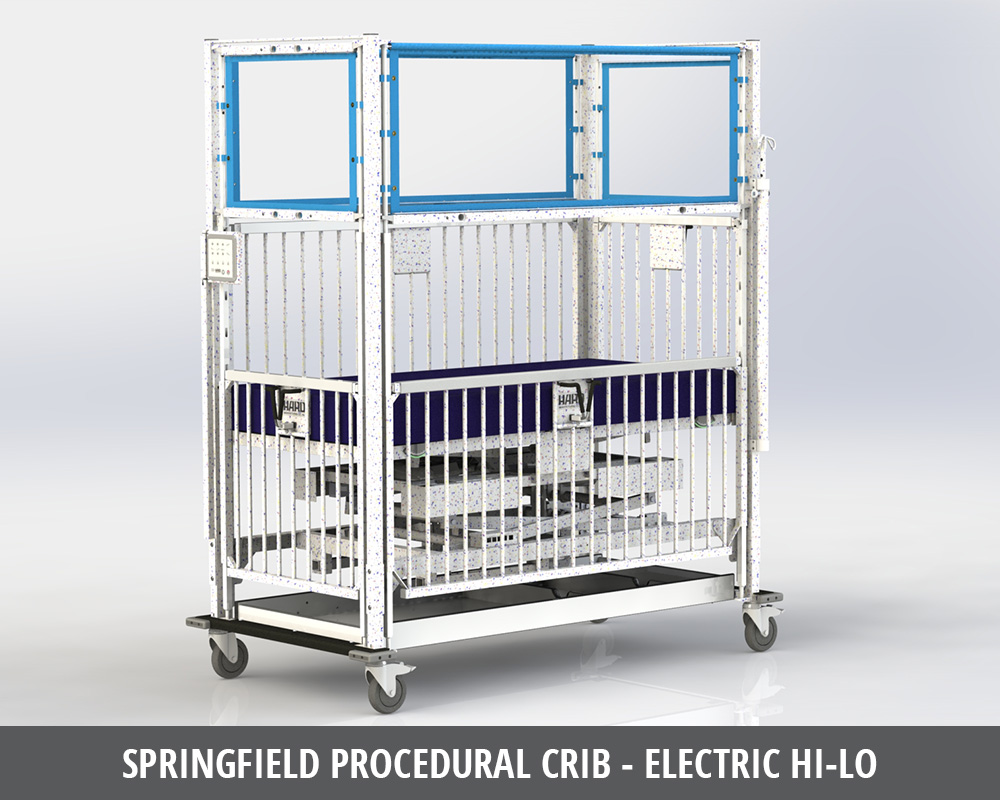

Springfield Procedural Crib - Electric Hi-Lo
Our fully electric model, featuring state-of-the-art linear actuators, provides for maximum ease of use in caring for the patient. The crib features a nurse control panel for easy adjustments of the crib head, foot and height as well as an emergency CPR function and battery backup option.
Specifications
Springfield Procedural Crib
Model # | 943 | 955 | ||
---|---|---|---|---|
Crib Dimensions - Overall without Bumpers | 30 x 60 in | 36 x 60 in | ||
Crib Dimensions - Overall with Bumpers | 34 x 65 in | 40 x 65 in | ||
Mattress Size | 28 x 58 x 5 in | 34 x 58 x 5 in | ||
Casters (2 with brakes, 1 steer) | 5 in | 5 in | ||
Overall Crib Height | 75 in | 75 in | ||
Floor to Top of Platform | 29 in | 29 in | ||
Height of Sides | 45 in | 45 in | ||
Weight | 257 lbs | 287 lbs |
Springfield Procedural Crib - Manual Hi-Lo
Model # | 843 | 855 | ||
---|---|---|---|---|
Crib Dimensions - Overall without Bumpers | 30 x 60 in | 36 x 60 in | ||
Crib Dimensions - Overall with Bumpers | 34 x 65 in | 40 x 65 in | ||
Mattress Size | 28 x 58 x 5 in | 34 x 58 x 5 in | ||
Casters (2 with brakes, 1 steer) | 5 in | 5 in | ||
Overall Crib Height | 75 in | 75 in | ||
Floor to Top of Platform: Highest Position | 39 in | 39 in | ||
Floor to Top of Platform: Lowest Position | 29 in | 29 in | ||
Height of Sides | 45 in | 45 in | ||
Weight | 250 lbs | 285 lbs |
Springfield Procedural Crib - Electric Hi-Lo
Model # | 743 | 755 | ||
---|---|---|---|---|
Crib Dimensions - Overall without Bumpers | 30 x 60 in | 36 x 60 in | ||
Crib Dimensions - Overall with Bumpers | 34 x 65 in | 40 x 65 in | ||
Mattress Size | 28 x 58 x 5 in | 34 x 58 x 5 in | ||
Casters (2 with brakes, 1 steer) | 5 in | 5 in | ||
Overall Crib Height | 75 in | 75 in | ||
Floor to Top of Platform: Highest Position | 42 in | 42 in | ||
Floor to Top of Platform: Lowest Position | 30 in | 30 in | ||
Height of Sides | 45 in | 45 in | ||
Weight | 334 lbs | 364 lbs |
Springfield Procedural Crib
Model # | 943 | 955 | ||
---|---|---|---|---|
Crib Dimensions - Overall without Bumpers | 76 x 152 cm | 91 x 152 cm | ||
Crib Dimensions - Overall with Bumpers | 86 x 165 cm | 102 x 165 cm | ||
Mattress Size | 71 x 147 x 13 cm | 86 x 147 x 13 cm | ||
Casters (2 with brakes, 1 steer) | 13 cm | 13 cm | ||
Overall Crib Height | 191 cm | 191 cm | ||
Floor to Top of Platform | 74 cm | 74 cm | ||
Height of Sides | 114 cm | 114 cm | ||
Weight | 116.6 kgs | 130.2 kgs |
Springfield Procedural Crib - Manual Hi-Lo
Model # | 843 | 855 | ||
---|---|---|---|---|
Crib Dimensions - Overall without Bumpers | 76 x 152 cm | 91 x 152 cm | ||
Crib Dimensions - Overall with Bumpers | 86 x 165 cm | 102 x 165 cm | ||
Mattress Size | 71 x 147 x 13 cm | 86 x 147 x 13 cm | ||
Casters (2 with brakes, 1 steer) | 13 cm | 13 cm | ||
Overall Crib Height | 191 cm | 191 cm | ||
Floor to Top of Platform: Highest Position | 99 cm | 99 cm | ||
Floor to Top of Platform: Lowest Position | 74 cm | 74 cm | ||
Height of Sides | 114 cm | 114 cm | ||
Weight | 113.4 kgs | 129.3 kgs |
Springfield Procedural Crib - Electric Hi-Lo
Model # | 743 | 755 | ||
---|---|---|---|---|
Crib Dimensions - Overall without Bumpers | 76 x 152 cm | 91 x 152 cm | ||
Crib Dimensions - Overall with Bumpers | 86 x 165 cm | 102 x 165 cm | ||
Mattress Size | 71 x 147 x 13 cm | 86 x 147 x 13 cm | ||
Casters (2 with brakes, 1 steer) | 13 cm | 13 cm | ||
Overall Crib Height | 191 cm | 191 cm | ||
Floor to Top of Platform: Highest Position | 107 cm | 107 cm | ||
Floor to Top of Platform: Lowest Position | 76 cm | 76 cm | ||
Height of Sides | 114 cm | 114 cm | ||
Weight | 151.5 kgs | 165.1 kgs |
